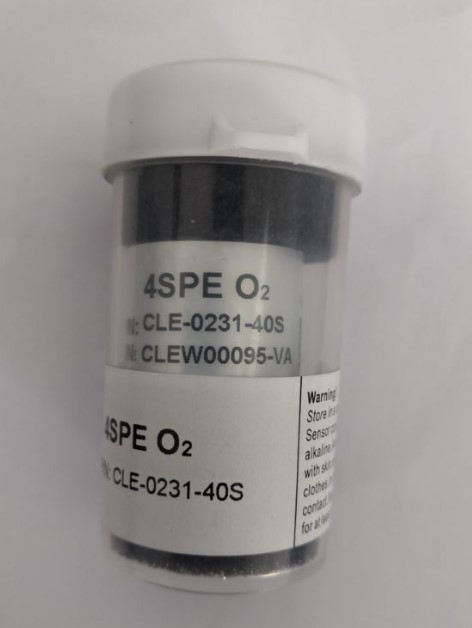

4SPE O2 CLE 0231 40S Oxygen Gas Sensor Under Ambient Conditions

Product Description
4SPE O2 CLE 0231 40S Oxygen Gas Sensor Under Ambient Conditions



4SPE O2 CLE-0231-40S Gas O2 Sensor High Respond



1.
All the performance specifications above are under ambient conditions, temperature 20°C, relative humidity 50%RH,
Measured at one atmosphere (100kPa or ambient pressure).
2.
It is recommended to use daily standard gas for calibration. We do not guarantee the accuracy of the calibration and measurement if the gas is used for calibration.
3.

Cross-sensitivity will vary by +/-30% and may vary with sensor production and sensor age.
4.

The above-mentioned cross-sensitivity includes but not limited to the above-mentioned gases, and the sensor may self-response to other gases.



Datasheet:

Resolution 0.1% O2
Response time (T90) less than or equal to 30 seconds
Operating temperature
-20oC to 50oC



Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110kPa
Bias -600 mV
Storage time 6 months (in special box)
Storage temperature 0 oC to 20 oC
Service life 2 years in air
