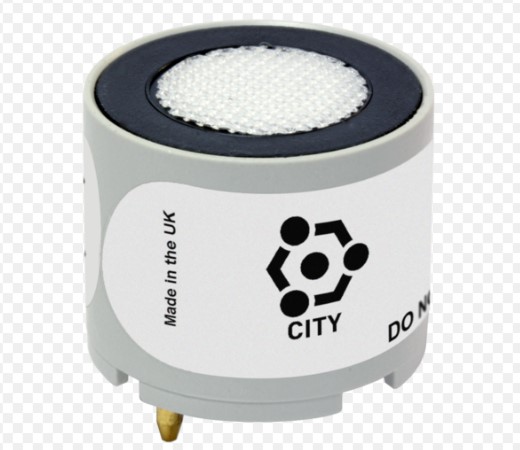

4OxLL Oxygen Gas Sensor AA783-33H , 30% vol City Oxygen Sensor

Product Description:

4OxLL AA783-33H Oxygen Sensor O2 Sensor



Features:

CITY oxygen sensor O2 sensor 4OXLL

Long life

Improved field reliability

Excellent environmental performance

Response time to lift under extreme conditions

Zero current (offset) (3 min after N2) : < Vol. 0.3% O2

Preheating time: Refer to the feature description

Linearity: S = K loge1/ (1-c)

Bias voltage: -600 ± 10 mV

Rated power at 20.9%O2:0.5 mW

Shell material: modified polyphenyl ether

Weight: 5 ± 0.2g

Directional sensitivity: < 0.2% vol.O2 equivalent value

Operating temperature range: 40°C ~ 60°C

Recommended storage temperature: 0°C ~ 20°C (original packaging)

Thermal transient (temperature drop of +22°C to -20°C) : < Vol. 23.5% O2



Specifications:

Operating humidity range 15%rH to 90%rH non-condensing
Operating pressure range Atmospheric pressure ± 20%
pressure coefficient 0.02% signal/mbar
Pressure transient (step change of 60 cm H2O) 150% signal change
Long-term output drift 5% signal loss (lifetime)
Expected working life 5 years (in air)
