WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

Product Description
WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors



WSP5110 Freon Sensor Used In The Home Environment Of Freon Detection Gas Device And Other Fields



Features:

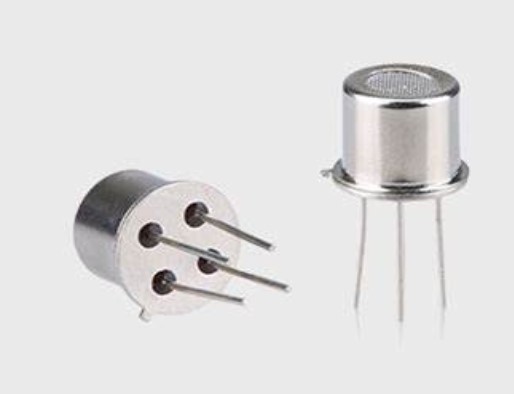

WSP5110 Freon gas sensitive element adopts advanced plane production technology, forming heater and metal oxide semiconductor gas sensitive material on micro Al2O3 ceramic substrate, with electrode lead out, encapsulated in metal tube seat, tube cap. When the detected gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the gas sensor. This change in conductivity can be translated into an output signal corresponding to the gas concentration using a simple circuit.



Specifications:

Product type planar semiconductor gas sensor
Standard package metal
Detection gas refrigerant, benzene, alcohol, etc
Detection concentration 10-1000ppm
