Weintek MT8101iE Human Machine Interface

Weintek MT8101iE Human Machine Interface

$560.00  $314.00
Save: 44% off


Part Number: MT8101iE

Specification
  • Display
    Display: 10.1" TFT
    Resolution: 800 x 480
    Brightness (cd/m2): 350
    Contrast Ratio: 500:1
    Backlight Life Time: >50,000 hrs.
    Colors: 262K
    LCD Viewing Angle (T/B/L/R): 60/60/70/70
  • Touch Panel
    Type: 4-wires Resistive type
    Accuracy: Active Area Length(X)??2%, Width(Y)??2%
  • Memory
    Flash: 128 MB
    RAM: 128 MB
  • Processor
    32-bit RISC Cortex-A8 600MHz
  • I/O Port
    USB Host: USB 2.0 x 1
    Ethernet: 10/100 Base-T x 1
    COM 2: RS-485 2W/4W
    COM 3: RS-485 2W
  • RTC
    Built-in
  • Power
    Input Power: 24??20 VDC
    Power Isolation: Built-in
    Power Consumption: 400 mA @ 24 VDC
    Voltage Resistance: 500VAC (1 min.)
    Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
  • Specification
    PCB Coating: Yes
    Enclosure: Plastic
    Dimensions WxHxD: 271  x 213 x 40 mm
    Panel Cutout: 260 x 202 mm
    Mount: Panel mount
  • Environment
    Protection Structure: NEMA4 / IP65 Compliant Front Panel
    Storage Temperature: -20?? ~ 60??C (-4?? ~ 140??F)
    Operating Temperature:     -0?? ~ 50??C (32?? ~ 122??F)
    Relative Humidity: 10% ~ 90% (non-condensing)
  • Certificate
    CE: CE marked
  • Software
    EasyBuilder Pro

  • Availability: In Stock
  • Estimated Lead Time: Usually Ships in 1 - 5 Working Days
  • Shipping Weight: 4 Kg

Add to Cart:

  • Model: MT8101iE
  • 7 Units in Stock


Processing Time
  • Ships in 24 hours: Processing Time is guaranteed to be shorter than 24 hours.
  • Typical Processing Time: 3 - 12 days

We ship to over 200 countries worldwide!

You May Also Like

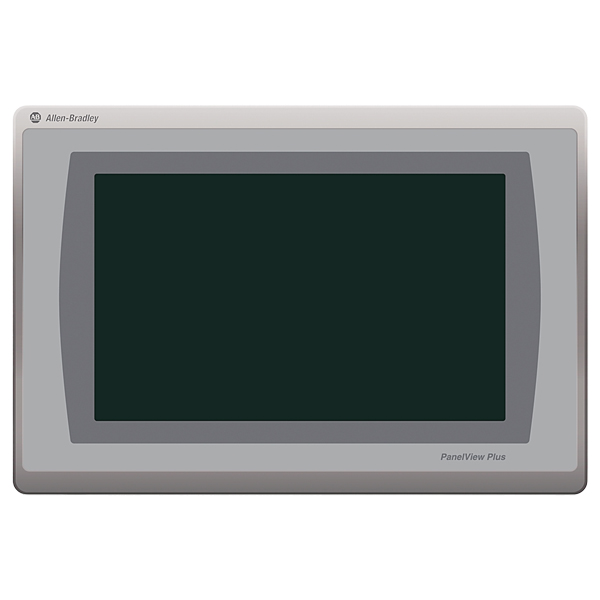

2711P-T10C22D9P New Allen Bradley PanelView Plus 7 Performance Terminal
