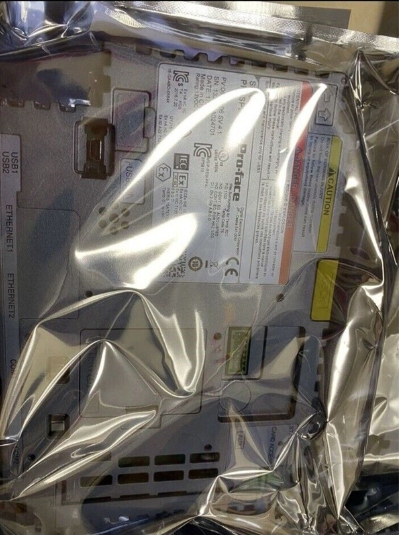

PFXSP5700TPD+PFXSP5B10 New Proface 15 Touch Screen Operator Interface
  • PFXSP5700TPD+PFXSP5B10 New Proface 15 Touch Screen Operator Interface
  • PFXSP5700TPD+PFXSP5B10 New Proface 15 Touch Screen Operator Interface
  • PFXSP5700TPD+PFXSP5B10 New Proface 15 Touch Screen Operator Interface

PFXSP5700TPD+PFXSP5B10 New Proface 15 Touch Screen Operator Interface

$3,290.00  $2,930.00
Save: 11% off


Display Type: TFT Color LCD
Display Size: 15”
Resolution: 1,024 x 768 pixels (XGA)
Effective Display Area: W304.1 x H228.1 mm (W11.97 x H8.98 in.)
Display Colors: 16 million colors
For details about Display Colors, refer to the manual for your screen editing software.
Backlight: White LED
(Not user replaceable. When replacement is required, contact your local distributor.)
Brightness Control: 0...100 (Adjusted with touch panel or software)
Backlight Service Life:
50,000 hours or more (continuos operation at 25 °C [77 °F]
before backlight brightness decreases to 50%
Application Memory: Screen Size: 64MB *SD card
Touch Panel Type: Resistive Film (analog, multi-touch)
Touch Panel Resolution: 1,024 x 1,024
Touch Panel Service Life: 1 million times or more
USB (TYPE-A): Front USB 2.0 (Type A) x 1¹
USB (mini-B): USB 2.0 (mini-B) x 1²

When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one bar code reader. If you connect multiple devices that are the same type, only the first device will work.
When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one bar code reader. If you connect multiple devices that are the same type, only the first device will work.

Add to Cart:

  • Model: PFXSP5700TPD+PFXSP5B10
  • 17 Units in Stock


Processing Time
  • Ships in 24 hours: Processing Time is guaranteed to be shorter than 24 hours.
  • Typical Processing Time: 3 - 12 days

We ship to over 200 countries worldwide!
