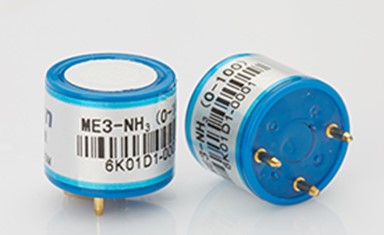

ME3-NH3 Gas Sensor Ammonia Electrochemical Principles

Product Description
ME3-NH3 Ammonia Gas Sensor Electrochemical Principles



ME3-NH3 electrochemical gas sensor is based on the principle of electrochemistry, using the measured gas to undergo corresponding redox reactions on the working electrode and counter electrode of the sensor and release charges, and form a current through an external circuit. The current size is proportional to the gas concentration, thereby Realize quantitative measurement of target gas.



Datasheet:

Sensitivity (80~160) uA/ppm
Resolution 0.5ppm
Response time (T90) ≤60S
Bias 0mV 0mV
Load resistance (recommended) 10Ω
Repeatability <10% output value
Stability (/month) <10%
Output Linearity Linearity
Zero drift (-20℃～40℃) -3～10ppm
Temperature range ﹣20℃～50℃
Humidity range 15﹪~ 90﹪RH non-condensing
Pressure range Standard atmospheric pressure ±10%
Service life 2 years (2ppmNH3)
