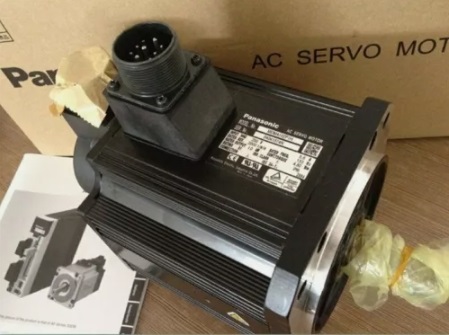

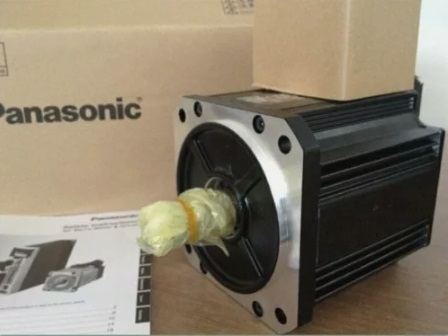

MDMA102P1H New panasonic AC servo motor 1000w

Details Middle inertia, Connector type, IP65
Family Name MINAS A4 Family
Series MDMA Series
Type Middle inertia
Protection class IP65
Flange sq. dimension 130 mm sq.
Flange sq. dimension (Unit:mm) 130
Motor lead-out configuration Connector
Motor encoder connector Connector
Voltage specifications (V) 200
Rated output (W) 1000
Holding brake with
Mass (kg) 8.7
Oil seal with
Shaft Key-way
Rated torque (N ⋅ m) 4.8
Momentary Max. peak torque (N ⋅ m) 14.4
Max. current (A (o-p)) 24.0
Regenerative brake frequency (times/min) Without option :No limit
With option : No limit
Option (External regenerative resistor) Part No. : DV0P4284
Rated rotational speed (r/min) 2000
Rated rotational Max. speed (r/min) 3000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 6.79
