MAX250A Fuel Cell Three Wire Oxygen Sensor R125P04-001 8.5 - 13.5mV Signal output

Product Description

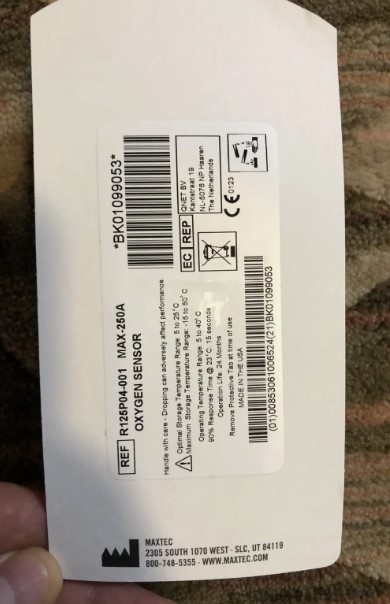

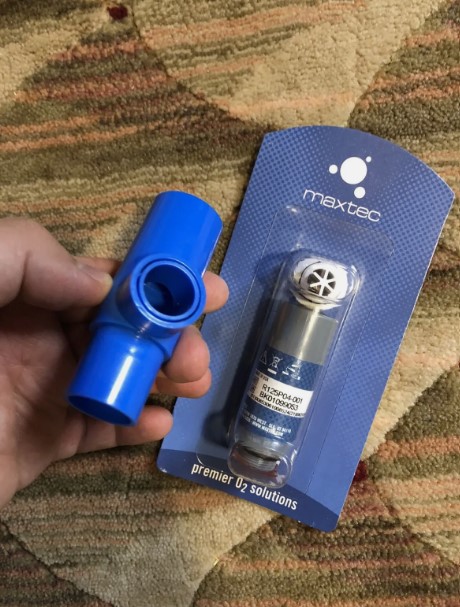

MAX250A R125P04-001 Oxygen Cell Oxygen Sensor Three Wire Connector



The MAX-250A is a galvanic oxygen sensor with long service life and no external power supply. The MAX-250A oxygen sensor has a wide range of applications in the medical field, especially respiratory equipment and anesthesia equipment. In addition, the electrical interface of the sensor is a three-wire connector, and the sampling interface is a threaded shape, which is very convenient to use.



Specification Sheet:

Measurement range 0-100 %
Working life 900 000% hours, about 5 years in the atmosphere
Output 10 to 16 mV
Zero voltage Less than 0.5 mv
Resolution 0.1 %
Temperature range 5 ℃ to 45 ℃
Pressure range 0.5 to 1.5 ATM
Response time <15S (for 90%), <25S (for 97%)
Recommend a load value > 1 m Ω
Storage temperature 15 ℃ to 50 ℃
