Ethylene Oxide Electrochemical Gas Detector Analyzer 4ETO-100 CLE-1222-400

Product Description
Ethylene Oxide Electrochemical Gas Detector Analyzer 4ETO-100 CLE-1222-400

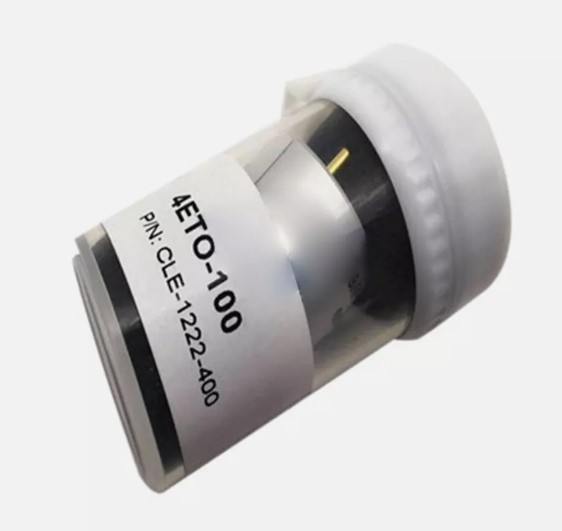

4ETO-100 CLE-1222-400 Ethylene Oxide Electrochemical Gas Sensor



Features:

Performance characteristics:

Load 2000 ppm

Sensitivity 0.02 ± 0.01 µA/ppm

Baseline (20 oC) < ± 0.2 µa

Baseline drift equivalent to 0 to 10 ppm (-20 oC to 50 oC)

Resolution 10 ppm

Response time (T90) 70 seconds

linearity

Long-term stability < 2% signal value per month

Working condition

Operating temperature -20 o

C to 50 oC

Operating humidity 15 to 90%RH (no condensation)

Working pressure 90 to 110 kPa

The bias is 0 mV

Storage time 6 months (in box)

Storage temperature 0 oC to 20 oC

Service life 2 years in the air

Physical property

It weighs about 5 grams



Specifications:

Working pressure 90 to 110 kPa
Operating temperature -20 oC to 50 oC
Response time (T90) 70 seconds
Resolution 10 ppm
