5s Response SGX VOX Oxygen Gas Sensor For Medical Instruments

Product Description
5s Response SGX VOX Oxygen Gas Sensor For Medical Instruments

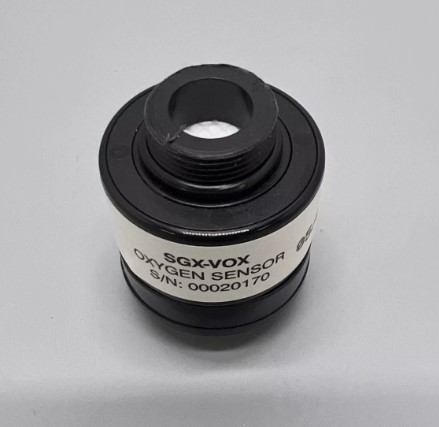

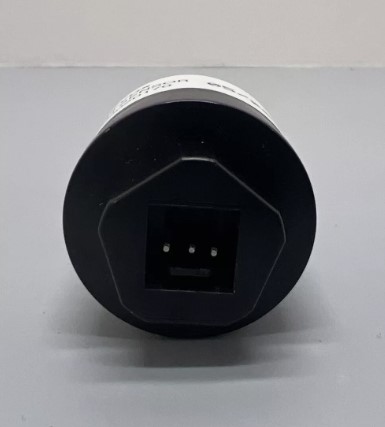

Oxygen Sensor For Medical Instruments O2 Sensor SGX-VOX



Features:

SGX Sensortech SGX-Vox Oxygen Sensor for ventilators is a 0% to 100% oxygen (O2) sensor with onboard temperature compensation. The oxygen sensor has < in air (measured at standard pressure and temperature); Zero current (offset) of 0.1% O2 and output voltage range of 9mV to 13mV. T90 Response time of SGX-VOX Oxygen Sensor < 5 seconds, T99.5 response time < Fifty seconds. The oxygen sensor provides O2 temperature compensation in the temperature range 0°C to 40°C. Two percent. The SGX-VOX oxygen sensor does not produce cross-sensitivity effects because the toxic gas content reaches the threshold limit value (TLV). The oxygen sensor is not suitable for continuous operation at carbon dioxide (CO2) concentrations exceeding 25%. The SGX-VOX sensor is not designed for use in applications where radioactive gases are present.

Specifications:

T99.5 Response time lt 50 seconds
Recommended load resistor 10KΩ
Long-term output drift per year < 5%
375000% O2 hours (at 20°C)
Repeatability ±0.05%F.S (typical value)
